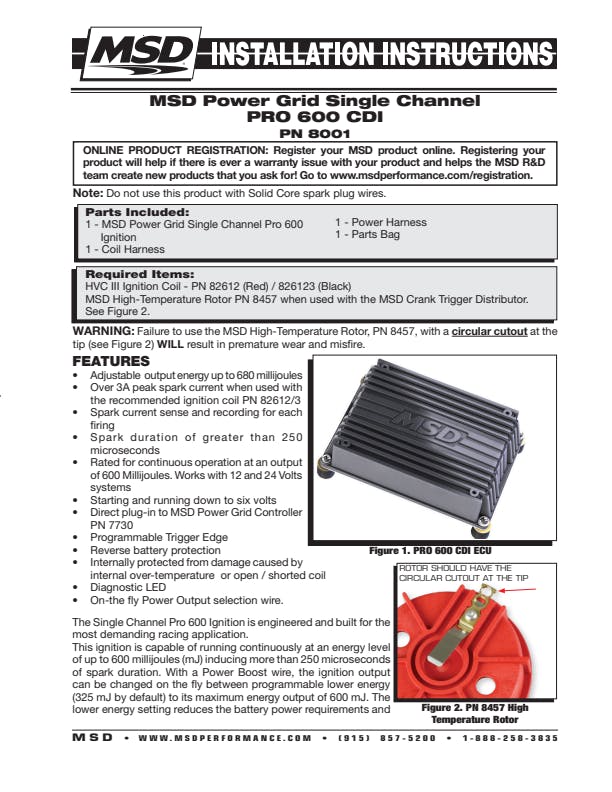

Single-channel capacitive discharge ignition designed for high cylinder pressure, high horsepower engines running an MSD Power-Grid.
The lower energy setting reduces the battery power requirements and lessens the stress on the secondary ignition components (distributor cap, rotor, spark plug wires and spark plugs).
The lower energy setting reduces the battery power requirements and lessens the stress on the secondary ignition components (distributor cap, rotor, spark plug wires and spark plugs).
- Operates between 12- 28V
- On-the-fly Power Output selection wire
- Compatible with 8/6/4 cylinder engines
- Minimum starting voltage 6-volts
- Reverse battery protection
- 3 Amps per 1,000 RPM @ 16 Volts and 600 mJ
- Spark duration of greater than 250 microseconds
- Over 3A peak spark current when used with the recommended ignition coil PN 82612/3
- Internally protected from damage caused by internal over-temperature or open / shorted coil
- Adjustable output energy up to 680 millijoules (mJ)
- Rated for continuous operation at an output of 600 mJ
- Diagnostic LED detects the presence of faults
- Direct plug-in to MSD Power Grid Controller PN7730
- Spark current sense and recording for each firing
Information:
Requires the use of HVC-III Coils with this ignition, PN 82612 or PN 826123, for current sensing data.| Attributes | |
| Brand | MSD |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Category | Ignition |
| Color | Black, Black |
| Connector Gender | Male Female |
| Connector Quantity | 4 |
| Country of Origin (Primary) | US |
| Current Draw | 3 Amps per 1,000 RPM @ 16 Volts and 600 mJ, 1000 |
| Emission Code | 4, 4, Off Road |
| Grade Type | Race |
| Harmonized Tariff Code (Schedule B) | 8511100000 |
| Hazardous Material Code | N |
| Height | 4.3 |
| Ignition Type | Performance |
| Length | 10.8 |
| Life Cycle Status Code | Available to Order |
| Maximum RPM | 15,000 RPM / 10,000 RPM at Full Power |
| Mount Type | Surface Mount, Surface Mount |
| Mounting Hardware Included | Yes, Yes |
| NAFTA Preference Criterion Code | B |
| Operating Voltage | 12-28 Volts, 12-28 |
| part type | Ignition Control Module |
| Primary Voltage | 330-550 Volts, 330-550 |
| Product Type | Ignition Box, Ignition Box |
| RPM | 10000 |
| RPM Range | 15,000 RPM / 10,000 RPM at Full Power |
| Sale Category | Electrical |
| SDR Required Flag | N |
| Secondary Voltage | 50,000 Volts, 50,000 |
| Spark Energy | 250-680 mj |
| Spark Energy (mJ per spark) | 250-680 |
| Sub Category | Control Modules, Control Modules |
| Terminal Gender | Male Female |
| Terminal Quantity | 16 |
| Warning | California Proposition 65, California Proposition 65 |
| Warranty | Limited 1 Year Warranty, Manufacturer's Limited 1 Year Warranty |
| Width | 7.4 |
| GTIN | 00090127130674 |
