Supports up to 900 EFI or 1050 Carb HP Compatible with Pump Gas*, Race gas, Diesel or E85
A male -6 to -8 AN discharge fitting with integral high-pressure check valve, terminal nuts, terminal boots and installation instructions are included.
A male -6 to -8 AN discharge fitting with integral high-pressure check valve, terminal nuts, terminal boots and installation instructions are included.
- Designed for high output naturally aspirated and forced induction EFI and carbureted vehicles. The roller vane design pump provides fuel pressure and volume to support up to 900 EFI N/A or 700 EFI Boosted horsepower.
- The 12-170 pump is compatible with Pwm
- Compatible with Flex Fuel (E85/E90) and all types of gasoline (100% Alcohol fuels may diminish fuel pump life)
- The inlet thread is a -8 AN female ORB (O-ring port fitting) and the discharge is a female -6 AN ORB (O-ring port fitting)

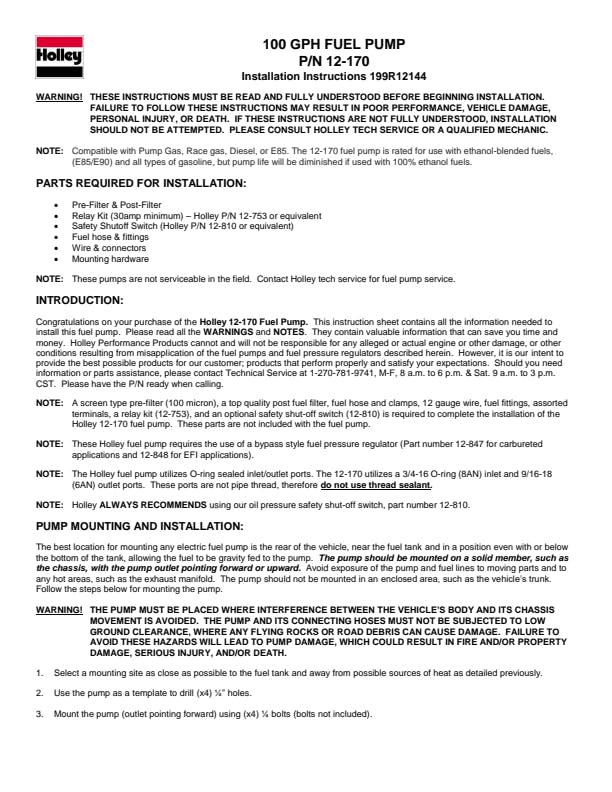

- Kit includes fuel pump, -6 to -8 male AN discharge fitting with check valve, terminal nuts & boots, instructions
Information:
Proper fuel system engineering is critical for maximum performance. Please see Holley Fuel System Chart for information about proper installation of your fuel system.| Attributes | |
| Application | Universal |
| Brand | Holley |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Category | Air and Fuel Delivery |
| Color | Silver |
| Country of Origin (Primary) | CN |
| Emission Code | 5, 5 |
| Finish | Anodized |
| Forced Induction HP@43PSI | 750, 750 |
| Forced Induction HP@60PSI | 700, 700 |
| Forced Induction HP@8PSI | 800, 800 |
| Free Flow GPH | 100, 105 |
| Free Flow LPH | 400, 400 |
| Fuel Delivery Type | Fuel Injection, Carburetor |
| Fuel Sending Unit Included | No, No |
| Fuel System | Carbureted, EFI |
| Fuel System Type | EFI |
| Fuel Type | Diesel, E85 |
| Gasket Or Seal Included | No, No |
| GPH@43PSI | 96, 96 |
| GPH@60PSI | 91, 91 |
| GPH@8PSI | 105, 105 |
| Grade Type | Performance, Performance |
| Harmonized Tariff Code (Schedule B) | 8708998180 |
| Hazardous Material Code | N |
| Inlet Fitting Thread Size | 3/4-16, 3/4-16 |
| Inlet Size | 8 AN O-Ring - 3/4-16 SAE, 8 AN O-Ring - 3/4-16 SAE |
| Inlet Type | 8 AN ORB, 8 AN ORB |
| Internal Or External | External, External |
| Life Cycle Status Code | Available to Order |
| LPH@43PSI | 364.7 without check valve, 364.7 without check valve |
| LPH@60PSI | 343.6 without check valve, 343.6 without check valve |
| LPH@8PSI | 390, 390 |
| Material | Aluminum, Aluminum |
| Maximum Flow Rating | 100, 100 |
| Maximum Pressure | 60, 60 |
| Mounting Hardware Included | No, No |
| NAFTA Preference Criterion Code | B |
| Naturally Aspirated HP@43PSI | 950, 950 |
| Naturally Aspirated HP@60PSI | 800, 900 |
| Naturally Aspirated HP@8PSI | 1050, 1050 |
| Negative Ground | Yes, Yes |
| Outlet Fitting Thread Size | 9/16-18, 9/16-18 |
| Outlet Quantity | 1, 1 |
| Outlet Size | 6AN, 6AN |
| Outlet Type | 6 AN ORB, 6 AN ORB |
| part type | Electric Fuel Pump, Electric Fuel Pump |
| Product Type | Fuel Pump, Fuel Pump |
| Pump Body Color | Black Anodized, Black Anodized |
| Regulator Included | No, No |
| Sale Category | Air and Fuel Delivery |
| SDR Required Flag | N |
| Strainer Included | No, No |
| Sub Category | Fuel Pumps and Related Components, Fuel Pumps and Related Components |
| Terminal Quantity | 2 |
| Universal Or Specific Fit | Universal, Universal |
| Voltage | 12, 12 |
| Warning | California Proposition 65, California Proposition 65 |
| Warranty | Limited 90 Day, Manufacturer's Limited 90 Day Warranty |
| Wire Quantity | 2, 2 |
| Wiring Harness Included | No, No |
| GTIN | 00090127060681 |
