Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Ford truck headers decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your exhaust system to bolt up to these Ford 352-427 FE headers, even if it is not perfectly aligned with the header collectors.
This set is part of Hedman's ELITE line that uses stout 3/8" flanges, and thicker 14 gauge primary tubes. The heavy-duty construction of HEDMAN ELITE Hedders makes them ideal for high-performance engines, which produce higher exhaust temperatures.
ELITE models have a MATTE-SILVER ceramic finish that can withstand temperatures up to 1400 degrees F. The coating looks great, and keeps more heat in the tubes, resulting in faster exhaust speeds for improved scavenging, and reduced underhood temperatures.

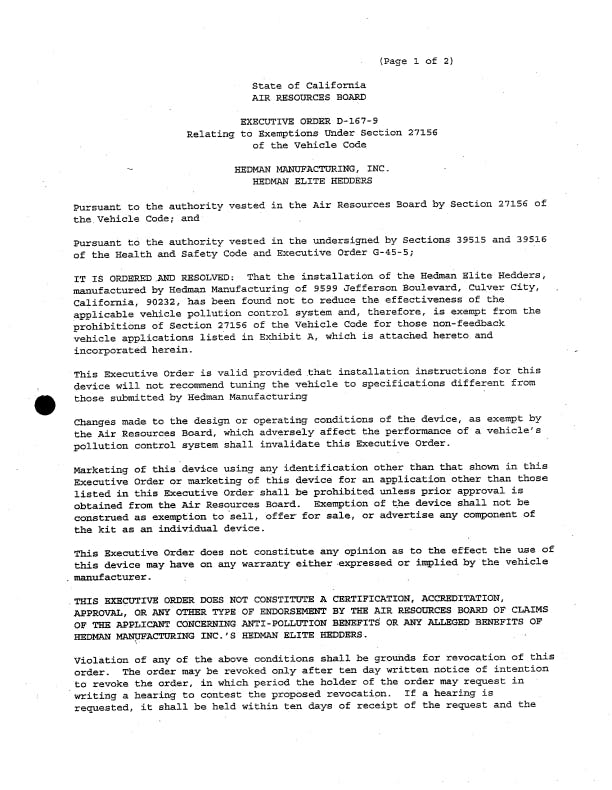

These LONG-TUBE headers fit 1965-1976 Ford 1/2, 3/4 and 1, ton 2WD Trucks with a 352-427 FE engine.These headers have been successfully tested and assigned E.O. number D167-9 by C.A.R.B., making these headers 50-state legal on the emissions-controlled 1975-1976 models without A.I.R. System. The long, smooth-flowing 1-3/4 in. tube design provides excellent exhaust flow to let your F-Series Ford truck's factory FE engine breathe easy, and produce loads of horsepower and torque. They fit manual and auto transmissions, but will not install on Camper Special or front swaybar equipped models.
Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.
Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. The ceramic-metallic coating is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.
- Heavy-Duty ELITE Header Construction With Thick 3/8 in. Flanges and 14g Primary Tubes To Hold Up To The Added Tortures Of High-Performance and Truck Engines.
- Thermal Coating Keeps More Heat In The Headers To Keep Underhood Temps Down and Protect Against Corrosion.
- Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
- Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
- Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
- Proud To Say, Made In The USA, Since 1954!
Application Summary:
| Year | Make/Model |
|---|---|
| 1965-1974 | Ford F-100 |
| 1965-1976 | Ford F-250 |
| 1965-1976 | Ford F-350 |
| Attributes | |
| Air Conditioning | Yes, Yes, Yes |
| Application | Automotive |
| ASIN | B000DZUR1O |
| Automatic Transmission - Column | Yes, Yes, Yes |
| Automatic Transmission - Floor | Yes, Yes, Yes |
| Bolts/Studs Included | Yes, Yes, Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Catalytic Converter(s) Included | No, No, No |
| Coating/Finish | Metallic Ceramic |
| Collector Attachment | 3", 3 in., 3 in. |
| Collector Bolts Included | Yes, Yes, Yes |
| Collector Diameter | 3 in., 3 in. |
| Collector Size | 3", 3 in., 3 in. |
| Collector Style | Ball and Socket Style (Gasketless), BALL and SOCKET Style (Gasketless), BALL and SOCKET Style (Gasketless) |
| Collector Tube Size (in.) | 3 |
| Contents | headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware, headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware, One pair of headers, head flange gaskets, collector flange gaskets (when applicable), 3-bolt exhaust adapters, mounting hardware |
| Country of Origin (Primary) | US |
| Crossover Pipe Included | NO, No, No |
| Cylinder Head | Stock Profile Heads, Stock Profile Heads, Stock Profile Heads |
| Cylinder Head Port Shape | Rectangle, Rectangle, Rectangle |
| Drivetrain | 2WD Only!, 2WD Only! |
| E.O. # | Yes, Yes |
| Emission Code | Legal US |
| Emissions Notes | EO# D167-9 (click here for covered vehicles in document on ARB.CA.GOV website), EO# D167-9 (click here for covered vehicles in document on ARB.CA.GOV website) |
| Engine Make/Size | Ford 5.9L/6.4L |
| Exhaust System Dia | 2-1/2", 2-1/2 in., 2-1/2 in. |
| Finish | Matte Silver Ceramic-Metallic, Matte Silver Ceramic-Metallic |
| Finish Type | MATTE SILVER Ceramic-metallic coated, MATTE SILVER Ceramic-metallic coated, MATTE SILVER Ceramic-metallic coated |
| Flange Style | Standard, Standard, Standard |
| Flange Thickness | 0.375", 0.375 in., 0.375 in. |
| Gasket # | 27740 |
| Gasket Or Seal Included | Yes, Yes, Yes |
| Harmonized Tariff Code (Schedule B) | 8708925000 |
| Hazardous Material Code | N |
| Head Flange Gasket | 27740 |
| Header Construction | ELITE Heavy-Duty, MILD STEEL- ELITE Heavy-Duty, MILD STEEL- ELITE Heavy-Duty |
| Header Fasteners Included | Yes, Yes |
| Header Finish | Matte Silver Ceramic-Metallic, Matte Silver Ceramic-Metallic, Matte Silver Ceramic-Metallic |
| Header Material | Mild Steel, Mild Steel, Mild Steel |
| Header Port Shape | Rectangle, Rectangle, Rectangle |
| Header Style | Long Tube, Long Tube |
| Installation Hardware Included | Yes, Yes, Yes |
| Life Cycle Status Code | Available to Order |
| Manual Transmission - Column | Yes, Yes, Yes |
| Manual Transmission - Floor | Yes, Yes, Yes |
| Material | Mild Steel, Mild Steel |
| Motor Mounts (Included) | NO, No |
| Motor Mounts Included | NO, No, No |
| Mounting Hardware Included | Yes, Yes, Yes |
| NAFTA Preference Criterion Code | B |
| Notes | 65-76 Ford 1/2, 3/4, 1 Ton Trucks; 2WD 352-427, 65-76 Ford 1/2, 3/4, 1 Ton Trucks; 2WD 352-427, 65-76 Ford 1/2, 3/4, 1 Ton Trucks; 2WD 352-427 |
| Package Contents | One pair of headers, head flange gaskets, collector flange gaskets (when applicable), 3-bolt exhaust adapters, mounting hardware, Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware, Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Port Shape | Rectangle, Rectangle, Rectangle |
| Power Steering | Yes, Yes, Yes |
| Primary Tube Diameter (in) | 1.75", 1.75 in., 1.75 in. |
| Primary Tube Gauge | 14g, 14g, 14g |
| Quantity | Sold as a pair., Sold as a pair., Sold as a pair. |
| Reducer Outlet Size | 2-1/2", 2-1/2 in., 2-1/2 in. |
| Reducers Included | Yes, Yes, Yes |
| Replacement Gasket | 27740, 27740, 27740 |
| Replacement Head Flange Gasket | 27740, 27740 |
| SDR Required Flag | N |
| Transmission Mount Included | NO |
| Transmission Mount/Crossmember (Included) | No, No |
| Transmission Mount/Crossmember Included | No |
| Tube Design | LONG TUBE, LONG TUBES, Standard |
| Tube Diameter | 1-3/4 in., 1-3/4" |
| Tube Direction | Down Swept |
| Tube Length | LONG Tubes, Long Tubes, Long Tubes |
| Tube Material Thickness | 14g, 14g, 14g |
| Tube Size | 1.75, 1-3/4", 1-3/4 in., 1-3/4 in. |
| Tube Style | Long Tube, Long Tubes, Long Tubes |
| Tuned | NO, No, No |
| Variations | 89100 (standard uncoated), 89106 (standard HTC Coated), 89100 (standard uncoated), 89106 (standard HTC Coated), 89100 (standard uncoated), 89106 (standard HTC Coated) |
| Weld-Up | No, No, No |
| with A.I.R. | No |
| with A.I.R. System | No, No, No |
| with EGR | No, No, No |
| Y-Pipe Included | No, No, No |
| GTIN | 00732611898102 |
